Description

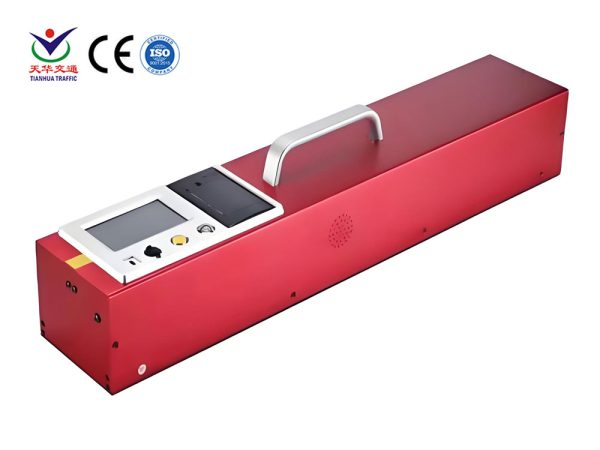

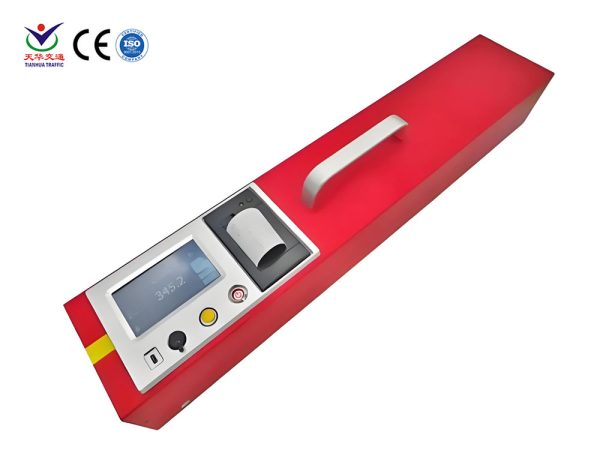

Retroreflectometers for road markings are portable field measuring instruments used to simulate the brightness of road markings as seen by drivers at night under vehicle headlamp illumination. The main measured parameter is the night-time luminous retroreflectance coefficient, also known as RL value, expressed in mcd·m-2·lx-1.
This instrument is used to evaluate the retroreflective performance of road markings and is suitable for laboratory testing, on-site inspection, construction acceptance, routine maintenance checks, and quality supervision. It is widely used by road marking manufacturers, road marking construction companies, testing institutions, and road quality supervision units.
For buyers in this field, the key concern is not only whether the instrument can measure data, but whether it can do so quickly, accurately, and conveniently in outdoor working conditions. A good retroreflectometer should reduce testing time, simplify calibration, store complete data records, and make field inspection more efficient for operators.
Our retroreflectometers for road markings are developed to meet these practical needs.
How we help solve customer pain points
1. Fast measurement for field efficiency

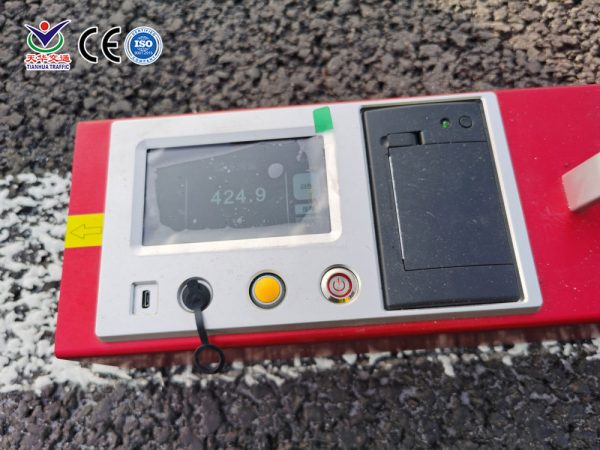

Road inspection work often needs to be completed quickly, especially on active roads or during project acceptance. This instrument supports rapid measurement and can measure the retroreflective coefficient value within 3 seconds, helping improve inspection efficiency and reduce waiting time on site.
2. Easy operation and simple calibration
Complicated calibration procedures can slow down testing and increase the chance of operating errors. This instrument supports a simple calibration procedure and, under the same field measurement conditions, supports one-off calibration of all colors before testing without separately calibrating different colors each time.
3. Reliable outdoor usability

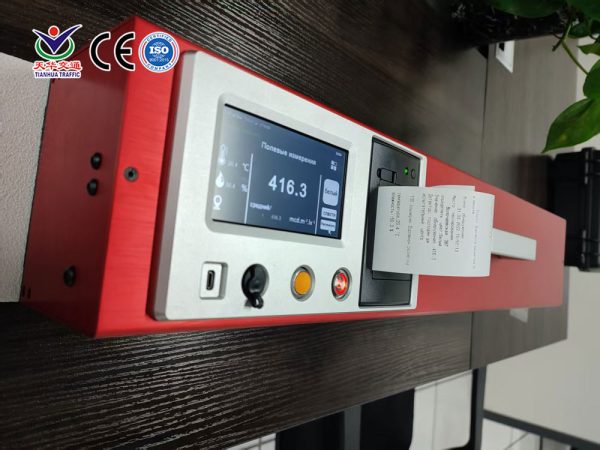

Field measurement often involves strong sunlight, long working hours, and changing environmental conditions. The instrument supports a high-brightness LCD transparent touch screen, making the interface clearly visible under illumination. It also supports real-time display of on-site temperature and humidity.
4. Long battery life for continuous inspection
For mobile testing teams, battery life is a major concern. This retroreflectometer is equipped with a large-capacity built-in battery and supports continuous working time of more than 72 hours, helping reduce interruptions during road inspection tasks.
5. Complete data storage and export
Many customers need not only measurement results, but also organized test records for reporting, review, and compliance documentation. The instrument supports storing more than 99,999 pieces of test data, including measurement data, operator, road section information, and testing time. It also supports 8G SD card storage and Excel-format data export to a computer through a U disk.
6. Better on-site reporting and communication
To improve现场检测效率 and reporting convenience, the instrument supports real-time voice broadcast of measured data, locking on-site detection data, and directly printing out testing results through a printer.
Why choose our retroreflectometers for road markings
- Portable instrument for road marking field inspection
- Fast RL value measurement within 3 seconds
- Simple calibration and convenient operation
- High-brightness LCD transparent touch screen
- Average value calculation from multiple measurements
- Storage for more than 99,999 test records
- 8G SD card data storage and Excel export support
- Real-time measured data voice broadcast
- On-site data locking and printing support
- Chinese and English input with touch buttonboard
- Real-time temperature and humidity display
- English menu mode for foreign customers
- Smart standby management and automatic sleep mode
- Small, light, and easy to carry
Main functional characteristics
- Support rapid measurement and obtain retroreflective coefficient value within 3 seconds
- Support simple calibration procedure
- Large battery capacity, super long standby, and quick charging
- Support high brightness LCD transparent touch screen and clear visibility under illumination
- Support multiple measurements to calculate average value
- Support storage of more than 99,999 test data records
- Store measurement data, operator, road section information, and testing time
- Support 8G SD card data storage
- Support Excel-format data storage and export to computer through U disk
- Support real-time broadcast of measured data
- Support locking on-site detection data and direct on-site printing through printer
- Support Chinese characters, English, and character input with touch buttonboard
- Support real-time display of on-site temperature and humidity
- Open English menu operation mode for foreign customers
- Support smart standby management and automatic sleep mode when idle
- Portable, small, and light
- Under the same on-site environment, support one-off calibration of all colors before testing
Technical specification
| Item | Specification |
|---|---|
| Product Name | Retroreflectometers For Road Markings |
| Measurement Item | Retroreflective coefficient, mcd·m-2·lx-1 |
| Measurement Range | 0–4000 |
| Observation Angle | 1.05° |
| Angle of Incidence | 88.76° |
| Complementary Angle | 1.24° |
| Light Source Color Temperature | 2856±50K |
| Measuring Aperture Area | 340mm × 95mm |
| Error of Repeatability Measurement | ≤3% |
| Continuous Working Time of Battery | >72h |
| Data Storage Space | 8GB |
| Built-in Battery Capacity | 13Ah |
| Charger | DC 8.4V |
| Ambient Temperature | -15℃ to +60℃ |
| Ambient Humidity | <98%, no frost |
| Instrument Size | 700mm × 135mm × 115mm |
Typical applications
Retroreflectometers for road markings are suitable for:
- Road marking manufacturers for product quality verification
- Road marking construction units for Construction quality inspection
- Road quality supervision departments for acceptance and inspection
- Laboratory retroreflective performance testing
- On-site testing of new and existing road markings
- Highway, municipal road, parking lot, and industrial road inspection
- Project acceptance testing and maintenance assessment
Recommended use
This instrument is designed for both laboratory and field use. For more accurate and efficient testing, operators can complete calibration before measurement, perform multiple measurements to calculate average values, and store complete test records for later review and reporting. The compact and portable structure makes it especially suitable for customers who need frequent on-site road marking inspection.
For different customer needs, we can support:
- Road marking manufacturers needing product performance testing equipment
- Contractors needing fast on-site inspection tools
- Supervision units needing data storage and reporting support
- Overseas buyers needing English menu operation and export supply
Project and cooperation cases
Case 1: Road marking contractor improving on-site inspection speed
A contractor needed a portable retroreflectometer for road acceptance and daily inspection work. The main requirement was fast measurement, simple operation, and reliable outdoor screen visibility. After using the instrument, the team improved measurement efficiency during field inspection and reduced manual record complexity.
Case 2: Road marking manufacturer building internal quality control process
A road marking material producer required a testing instrument to evaluate retroreflective performance before product delivery and during formula testing. The customer needed data storage, repeatable measurement, and convenient export. This instrument helped create a more standardized internal testing workflow.
Case 3: Overseas buyer needing English operation interface
An overseas customer wanted a retroreflectometer suitable for local road marking inspection teams. The key requirements were English menu support, portable design, long battery life, and easy data export. After confirming specifications, the buyer selected the model for field use and technical inspection work.
Frequently asked questions
What does this retroreflectometer measure?
It measures the night-time luminous retroreflectance coefficient of road markings, also called RL value, in mcd·m-2·lx-1.
Is this instrument suitable for field measurement?
Yes. It is a portable field measuring instrument designed for both on-site and laboratory use.
How fast is the measurement?
The instrument supports rapid measurement and can measure the retroreflective coefficient value within 3 seconds.
Can it store testing data?
Yes. It supports storing more than 99,999 pieces of test data, including measurement data, operator, road section information, and testing time.
Can the data be exported to a computer?
Yes. It supports 8G SD card storage and Excel-format data export to a computer through a U disk.
Does it support English menu operation?
Yes. It supports open English menu operation mode for foreign customers.
Can it be used outdoors in bright light?
Yes. It supports a high-brightness LCD transparent touch screen, and the interface can be seen clearly under illumination.
Does it support printing results on site?
Yes. It supports locking on-site detection data and directly printing out testing results through the printer.
How long can the battery work continuously?
The continuous working time of the battery is more than 72 hours.
Who usually uses this instrument?
It is commonly used by road marking manufacturers, road marking construction units, laboratories, and road quality supervision units.
Global cooperation opportunities
We are not only supplying road marking materials and equipment. We are also looking for long-term global partners in road safety and road marking inspection fields.
Distributor recruitment
If you already sell road marking equipment, road safety products, or testing instruments in your local market, we welcome distributor cooperation. We can support product supply, export service, and long-term cooperation.
Project and institutional supply
For contractors, laboratories, and supervision-related buyers, we can support equipment supply for project inspection, quality control, and acceptance applications.
Intermediary and commission cooperation
If you can introduce real buyers, contractors, road marking manufacturers, or institutional users, we welcome commission-based cooperation for serious business opportunities.
Get a quote for retroreflectometers for road markings
Tell us your application scenario, quantity, target market, and technical requirements. Our team can recommend a suitable retroreflectometer solution and provide quotation, export support, and product details.
- Portable field testing instrument
- Fast RL value measurement
- English menu for overseas customers
- Data storage, export, and printing support
- Suitable for manufacturers, contractors, and supervision units
